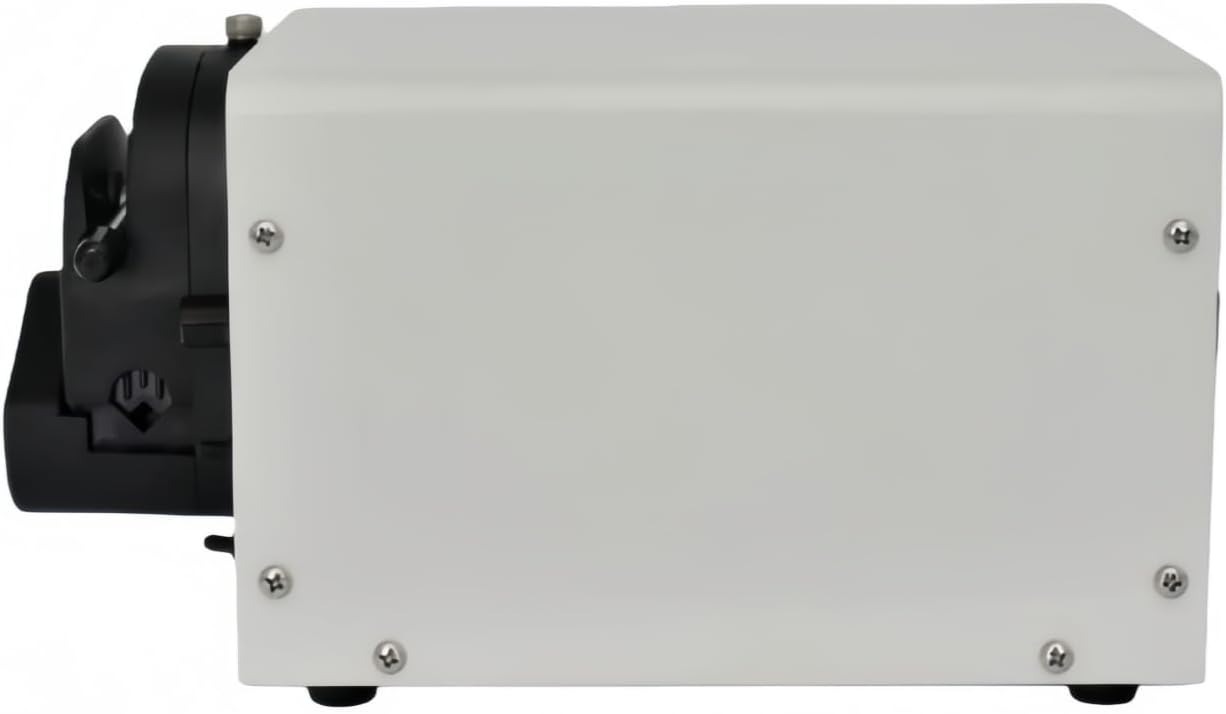

Variable Speed Peristaltic Pump High Flow 0-2400ml/min Water Metering Pump 4 Rollers Low Pulse with 2m Silicone Tube (220V)

Important: The hose is consumable and prone to wear and tear due to frequent use. Regular inspection and replacement are recommended.If you are pumping corrosive liquids, we highly recommend purchasing alternative chemical-resistant tubing separately. Our standard silicone tubing may not be compatible. Please feel free to consult us for suitable alternatives.Specification:Model: BT600M/YZ15Motor Type: Stepper MotorSpeed Range: 0.1-600 rpmFlow Range: 0.008-2400 ml/minSpeed Resolution: 0.1 rpm (≤100 rpm), 1 rpm (≥100 rpm)Accuracy Error: Flow accuracy error: ±0.5%Display Method: Three-digit high-brightness LED displayOperation Method: Toggle switch + Digital adjustment knobExternal Speed Control Method: 4-20mAExternal Control Types: External start/stop, External directional controlPort Outputs: DC12V power output, DC5V logic signal outputCommunication Interfaces: RS232, RS485 (controls driver start/stop, directional switching, speed parameters, etc.) Power Supply: AC 220V ±10%, 50Hz/60Hz; AC 110V ±10%, 50Hz/60Hz (optional)Power consumption: ≤50WOperating environment: Ambient temperature 0-40°C, relative humidity ≤80%Protection rating: IP31Weight: 6.4kgSize: 291mm × 184mm × 150mm (Length × Width × Height, including pump head)Maximum Flow Rate (for one channel, 600rpm, using clean water): 13# (ID0.8*OD4, mm) 0.008-48ml/min14# (ID1.6*OD4.8, mm) 0.028-170ml/min19# (ID2.4*OD5.6, mm) 0.053-320ml/min16# (ID3.2*OD6.4, mm) 0.088-530ml/min25# (ID4.8*OD8, mm) 0.188-1130ml/min17# (ID6.4*OD9.6, mm) 0.31-1860ml/min18# (ID7.9*OD11.1, mm) 0.4-2400ml/minNotes:Pump tubing size: 13#, 14#, 19#, 16#, 25#, 17#, 18#)Please let us know your desired tubing size; otherwise, we will ship a random size.Feature:Simple Operation: Three-digit high-brightness LED display shows rotational speed. BT-M series products can be stacked to save space; compatible with multiple pump heads.Rich Functionality: Features stepless speed adjustment, start/stop, and direction reversal. Equipped with a full-speed button for rapid filling and emptying.High Reliability: Newly upgraded third-generation circuit board ensures high reliability, excellent heat dissipation, low operating noise, and smooth operation. Features power-off memory function. Internal circuits undergo triple-proof treatment for superior anti-interference performance. Wide voltage design accommodates complex power supply environments.High Torque, Low Power Consumption: Stepper motor control maintains constant speed regardless of load variations, delivering high torque, low power consumption, and strong adaptability. Dual-CPU architecture separates drive and control functions, delivering rapid computation, stable operation, and high transmission accuracy.External Control Capabilities: Extensive external control options are available, including DC12V output for direct connection to various sensors such as capacitive sensors, liquid level sensors, and photoelectric sensors. The product hardware reserves multiple circuit interfaces to accommodate special customization requirements.Application:Chemical Industry, Pharmaceutical Industry, Printing and Paper Industry, Water Treatment, Household Chemicals Industry, Food Industry, Beverage Industry, Biotechnology, Petrochemical Industry, Coatings Industry, Ceramics Industry, Mining Industry, Electronics Industry, Textile Industry, Construction Industry, Automotive Industry, Furniture Industry, Metallurgy and Foundry Industry

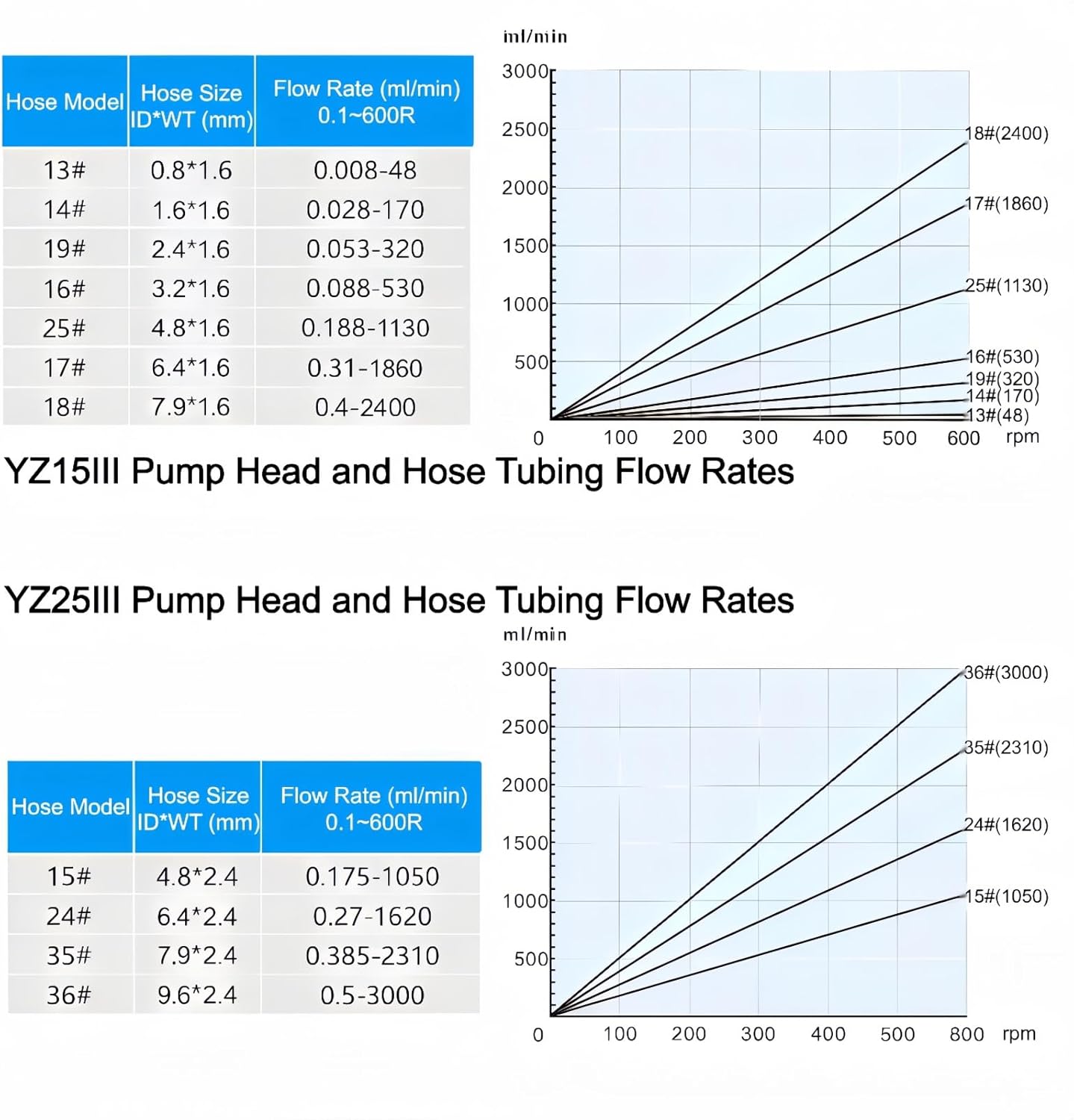

• Speed range: 0.1-600rpm. Flow rate: 0.4-2400ml/min, Compatible different tubing size, pumping at different flow rate
• Stepper motor Variable speed, large torque,low power consumption, strong adaptability. Excellent driving circuit performance, good heat dissipation, low noise, stable running, with power off memory function. Conformal coating is used on the circuit board, wide voltage design, suitable for complex environment.
• High Flow Adjusatble, Stepper motor for long service life，Support analog remote control options such as capacitance sensor, liquid level sensor,photoelectric sensor and foot switch -ideal for automated process applications.
• This peristaltic pump Can be widely used in laboratory ,medical, food, beverage, etc
• Power supply: AC110V-220v ±10%, 50Hz/60Hz
