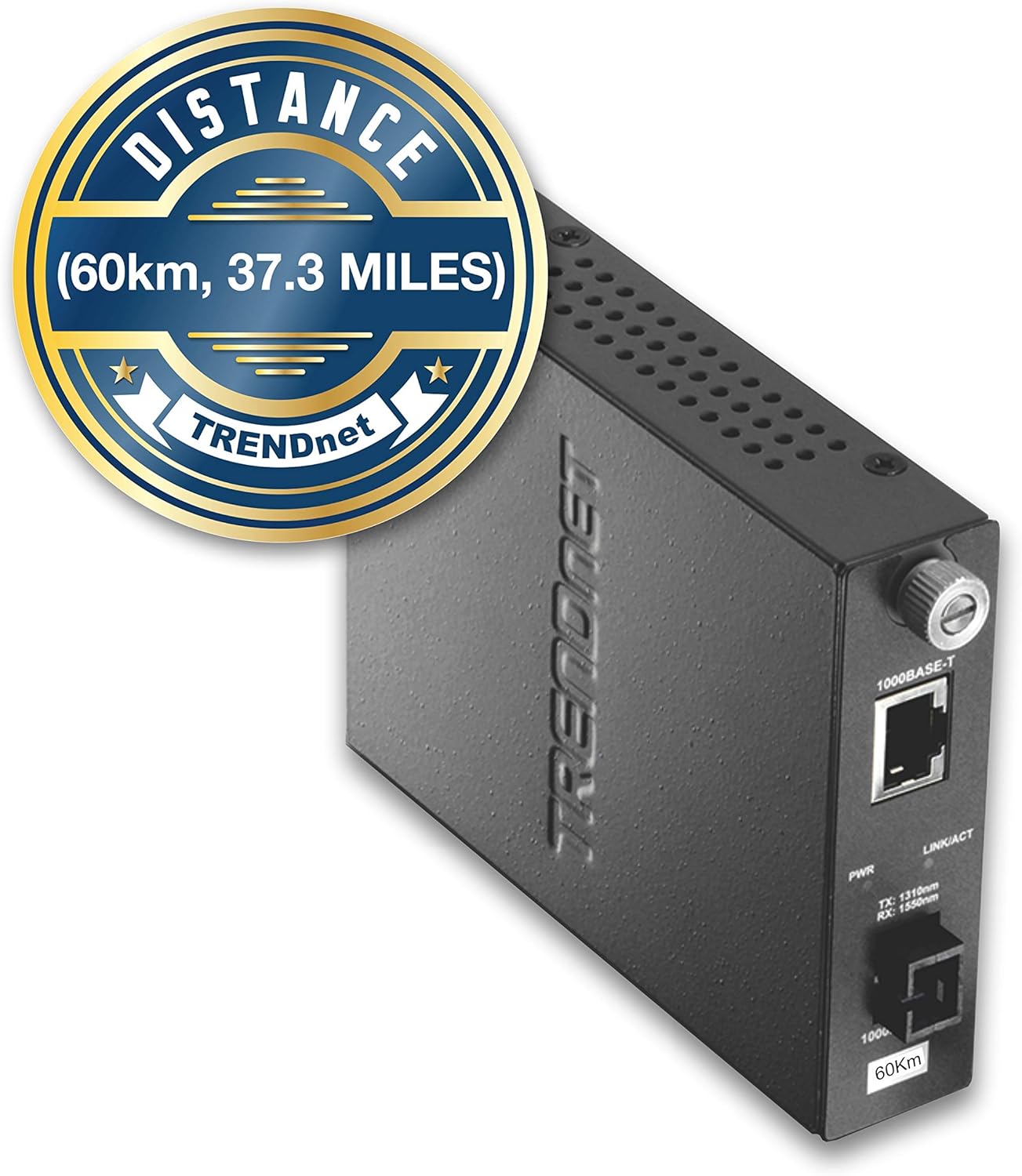

TRENDnet Intelligent Fiber Media Converter 1000Base-T to 1000Base-LX Dual Wavelength Single Mode SC Fiber (60 km / 37.3 miles)Fiber to Ethernet Converter, RJ-45 Port,Lifetime Protection, TFC-1000S60D3

The TFC-1000S60D3 Bi-Directional Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Dual Wavelength Single Mode SC-Type fiber converter that supports port-based SNMP reporting and spans distances up to 60 km (37.3 miles). This module must be used with the TFC-1000S60D5 module.Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-LX (SC Simplex Type) port.• Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX standards• 1 x 1000Base-T RJ-45 port• 1 x 1000Base-LX single-mode bi-directional simplex-SC type fiber port• Provides Dip switch to set: Fiber (Forced / Auto-Negotiation), LLR (Enable / Disable)• Support LLCF (Link Loss Carry Forward, Link Pass Through)• Support LLR (link Loss Return) for FX port• Monitor and configure Ethernet or Fiber’s duplex mode, LLR, port on / off and receive link down information via management module TFC-1600MM and chassis TFC-1600• Status LED indicators for Power and Link / Activity• Wall mountable• Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters• Lifetime TRENDnet Manufacturer’s WarrantyPACKAGE CONTENTS• TFC-1000S60D3• Multi-Language Quick Installation Guide• Power Adapter (5V, 1A)

• Must use with TFC-1000S60D5
• SC-type dual-wavelength single-mode fiber port connects over distances of up to 60 km (37.3 miles)
• 1000Base-T Gigabit copper port supports Full-Duplex mode
• Supports port level SNMP management
• Functions as a stand alone converter or with the TFC-1600 fiber chassis
• Lifetime TRENDnet Manufacturer’s Warranty
