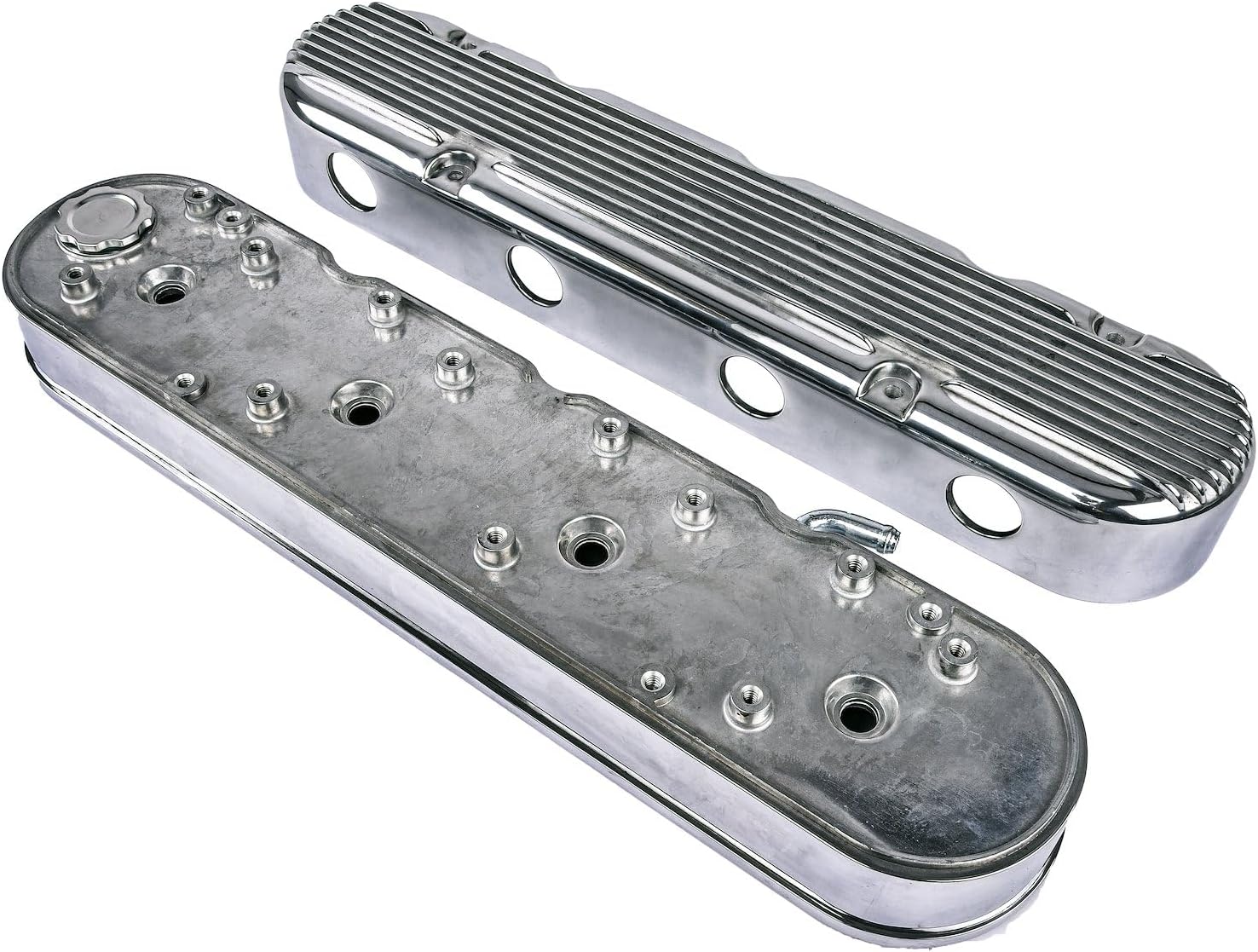

JEGS 501075 Polished Finned Aluminum Valve Covers for GM LS Engine-Hidden Coils
Product details
| Management number | 216153172 | Release Date | 2026/04/19 | List Price | $12.00 | Model Number | 216153172 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Polished Finned Aluminum Valve CoversGM LS1/LS2/LS3/LS6 and LS72-piece Hidden Coil DesignCenter-Bolt MountingDimensions: 19 1/4 in. L x 4 1/8 in. W x 4 1/4 in. HPolished Aluminum w/Finned TopSet of 2 Height Dimensions Click HereJEGS 5001075 polished valve covers are designed to work with the two most common LS style Delco ignition coils (D510C & D580). We recommend 555-40160K2 or 555-40166KNote: Will NOT work with Corvette belt alignmentCovers Fit these LS Engines:4.8 L / 293 c.i.5.3 L / 325 c.i.5.7 L / 346 c.i.6.0 L / 364 c.i.6.2 L / 376 c.i.7.0 L / 427 c.i.Includes:(2) Aluminum lower valve covers(2) Aluminum upper coil covers(8) 1/4 in.-20 x 2 3/16 in. L stainless steel coil cover mounting bolts with 1/4 in. 12-point flange head(8) 1/4 in. I.D. x 5/8 in. O.D. x .085 thick, coil cover mounting bolt rubber washers(16) 1/4 in.-20 x 1 1/4 in. L stainless steel coil attaching bolts with 3/8 in. 6-point hex flange head(16) 1/4 in. I.D. x 1/2 in. O.D. x 9/16 in. L black plastic coil spacers(8) 6mm x 1.0mm x 83mm L stainless steel lower valve cover bolts with 9mm hex head(8) 1/4 in. I.D. x .782 in. O.D. x .076 in. thick steel lower valve cover flat washers(8) 1/4 in. I.D. x .470 in. O.D. x 2 5/8 in. L aluminum lower valve cover spacers with rubber grommets(2) Low-Profile Oil Fill Caps(1) JEGS valve cover gasket set of 2...
- GM LS1/LS2/LS3/LS6 and...
- 2-piece Hidden Coil...
- Center-Bolt...
- Dimensions: 19 1/4 in. L x 4 1/8 in. W x 4 1/4 in....
- Polished Aluminum w/Finned...
| Brand | JEGS |
|---|---|
| Model | JEGS |
| Exterior | Per Item Description |
| Item Weight | 16.2 pounds |
| Manufacturer | JEGS |
| OEM Part Number | 501075 |
| Item model number | 555-501075 |
| Product Dimensions | 20.3 x 10.7 x 5.2 inches |
| Manufacturer Part Number | 501075 |
