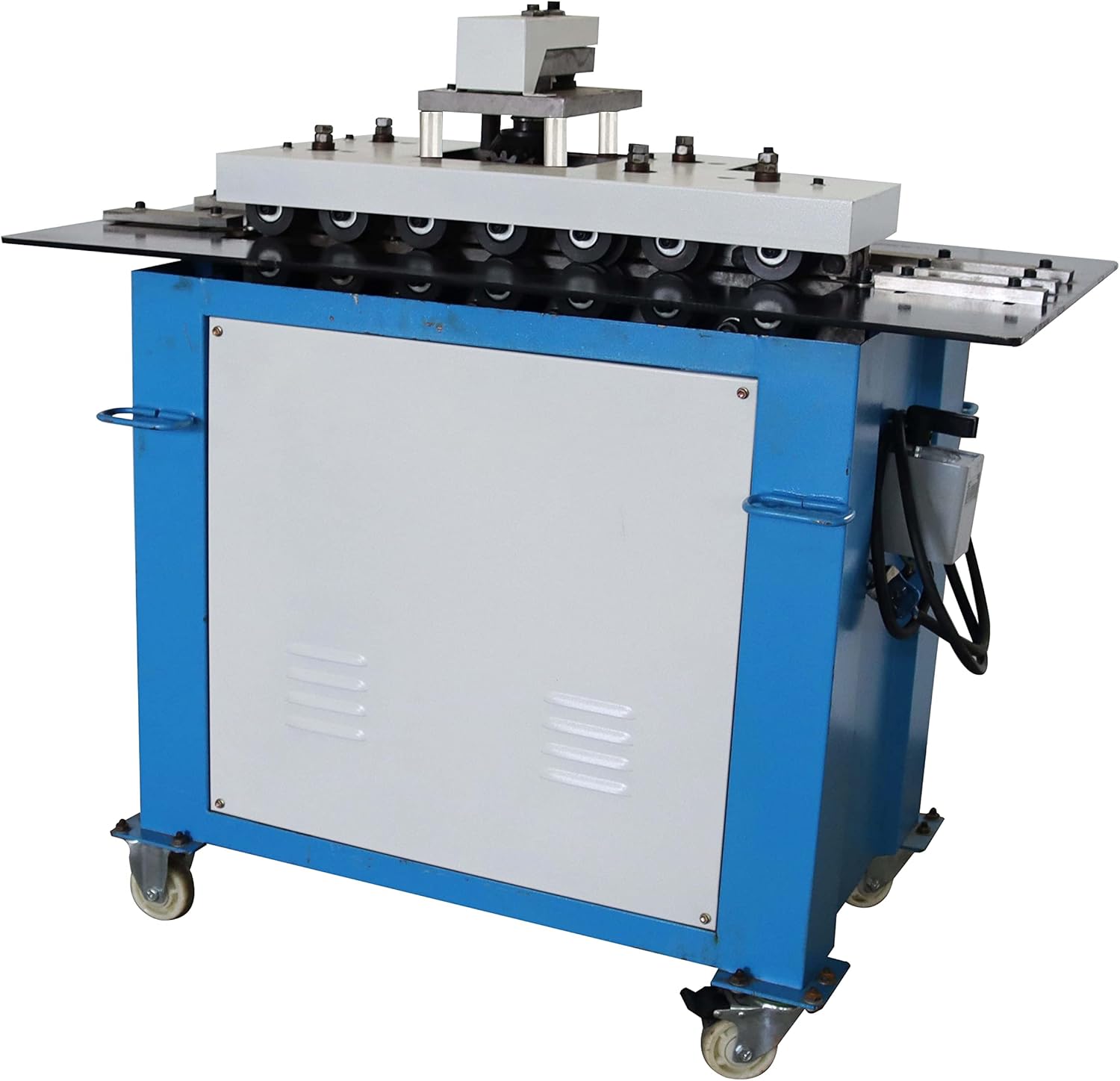

INTSUPERMAI Seam Lock Forming Machine Sheet Metal Lock Seam Roll Forming Machine Square Rectangular Ventilation Exhaust Pipes Sheet Metal Lock Seam Forming Machine 220V

This machine is a special equipment for processing all kinds of square and rectangular ventilation and exhaust pipes. The machine can process steel plates of 0.5-1.2mm thickness into seven shapes. It has the characteristics of small volume, light weight and easy to move. Parameters: Thickness of shearing plate: 1.2mm Power: 1.5KW Voltage：220V Weight：462Lbs （210KG）v Features:v 1.The bottom of the biting machine is equipped with high load-bearing and high wear-resistant universal wheels，which are suitable for various working environments and follow the retreat. 2.The rolls of biting mill are quenched and heat treated with high-quality wear-resistant allay steet. They have high hardness and wear resistance. The continuous high-load fatigue working strength of the rolls is more than 2500 hours. 3.The function swithing of biting machine can be realized by adjusting the position of function board by screw, which is simple to operate and efficient to process. 4.The coil is made of pure copper wire, long life and low power consumption. Item Number(239728): 1*Seam Lock Forming Machine

• 【Application】This machine is a special equipment for processing all kinds of square and rectangular ventilation and exhaust pipes. The machine can process steel plates of 0.5-1.2mm thickness into seven shapes. It has the characteristics of small volume, light weight and easy to move.
• 【Wheels】 The bottom of the biting machine is equipped with high load-bearing and high wear-resistant universal wheels，which are suitable for various working environments and follow the retreat.
• 【Parameters】 Thickness of shearing plate: 1.2mm, Power: 1.5KW, Voltage：220V, Weight：462Lbs （210KG）
• 【Biting Mill Rolls】The rolls of biting mill are quenched and heat treated with high-quality wear-resistant allay steet.They have high hardness and wear resistance.The continuous high-load fatigue working strength of the rolls is more than 2500 hours.
• 【Easy to Use】The function swithing of biting machine can be realized by adjusting the position of function board by screw, which is simple to operate and efficient to process.
