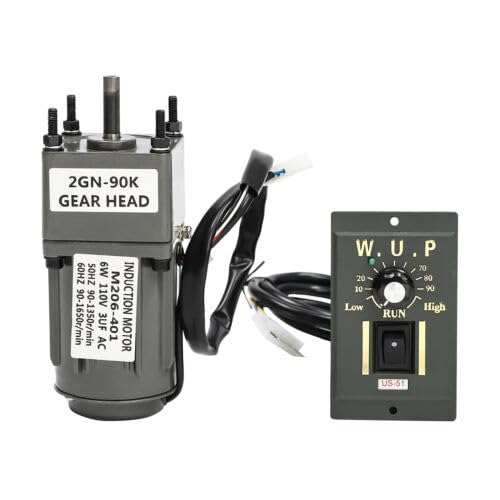

High Torque 110V 15RPM 90K Low Speed AC Gear Reducer Motor Reversible + Governor

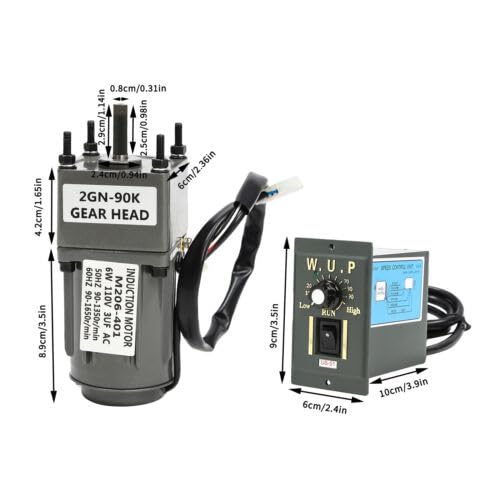

Application As an AC motor, it has a more complete structure and runs more smoothly, making it a good choice for gear motors! It can be widely used in packaging, printing, textile, dyeing, medical, pharmaceutical, and other engineering work, as well as advertising, office, instrumentation, stage lighting, transmission, automatic warehouse, parking door security, automatic doors and windows, conveyor, vending machine, feeder, calender, extruder, peeling machine, blender, cargo lifts, food machinery, and other equipment. Specifications Model: M206-401 Motor Material: Alloy Aluminum, Copper, Alloy Steel, Steel Sheet, Iron, Aluminum Reducer Material: Copper, Alloy Aluminum, Alloy Steel, Lubricating Grease Gear Surface Treatment: Nitriding Reversible: Yes Number of Items: 1 Power: 6W Governor Power: 6W Power Source: Corded Electric Rated Voltage: ‎AC 110V Capacitance: 3uF Ratio: 90:1(90K) Motor Wire Length: 40cm/15.7in Governor Wire Length: 80cm/31.5in No-load Speed: About 15RPM, 2.9NM Shaft Diameter: 8mm/0.31in Shaft Length: 29mm/1.14in Key Depth: 25mm/0.98inch Through-hole: ∅5.5 Diagonal Installation Hole Distance: 70mm/2.75in Speed: 50Hz, 90-1350RPM/60Hz, 90~1650RPM Working Temperature: -10~50°C/14~122°F Holder Size(UP*Down*H): 6.1*10*6.9cm/2.4*3.93*2.72in Governor Size: 6*10*9cm/2.4*3.9*3.5in Gear Motor Size: 6*6*13.1cm/2.36*2.36*5.15in Package Size: 24*23.6*12.5cm/9.4*9.3*4.9in Gross Weight: 1.89kg/4.16 lbs Net Weight: 1.5kg/3.3 lbs Package Included 1*Gear Motor 1*Governor 1*Holder 1*English Manual

• 【Durable All-Metal Build】 Constructed from alloy aluminum, copper, alloy steel, steel sheet, and iron, this tool features a nitriding process on key components to support heat resistance and enhance long-term durability.
• 【Smooth Stable Performance】 Equipped with all-metal gearing, dual ball bearings, and pure copper windings, this design reduces friction and heat during operation. The high-precision bearings support higher rotation speeds, lower operating temperatures, and consistent performance under load.
• 【Flexible Directional Control】 This tool includes a reversing function compatible with normally open or normally closed wiring, offering adaptable operation for forward and reverse applications.
• 【Efficient High-Speed Output】 Powered by a 6W motor capable of reaching speeds up to 1650 RPM, this device delivers efficient performance to help increase task productivity.

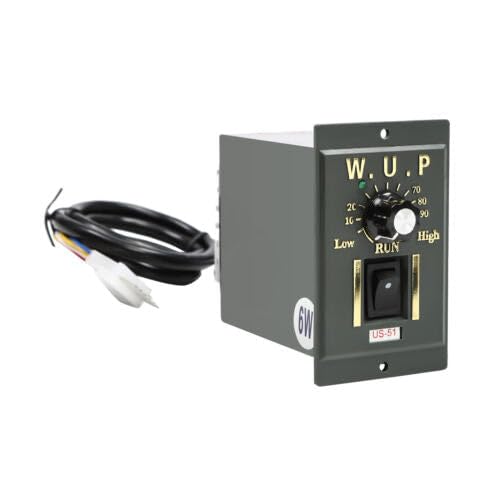

• 【Stepless Speed Adjustment】 The integrated governor offers a wide range of selectable speeds while maintaining strong torque, allowing smooth adjustment to match different materials and desired results.
