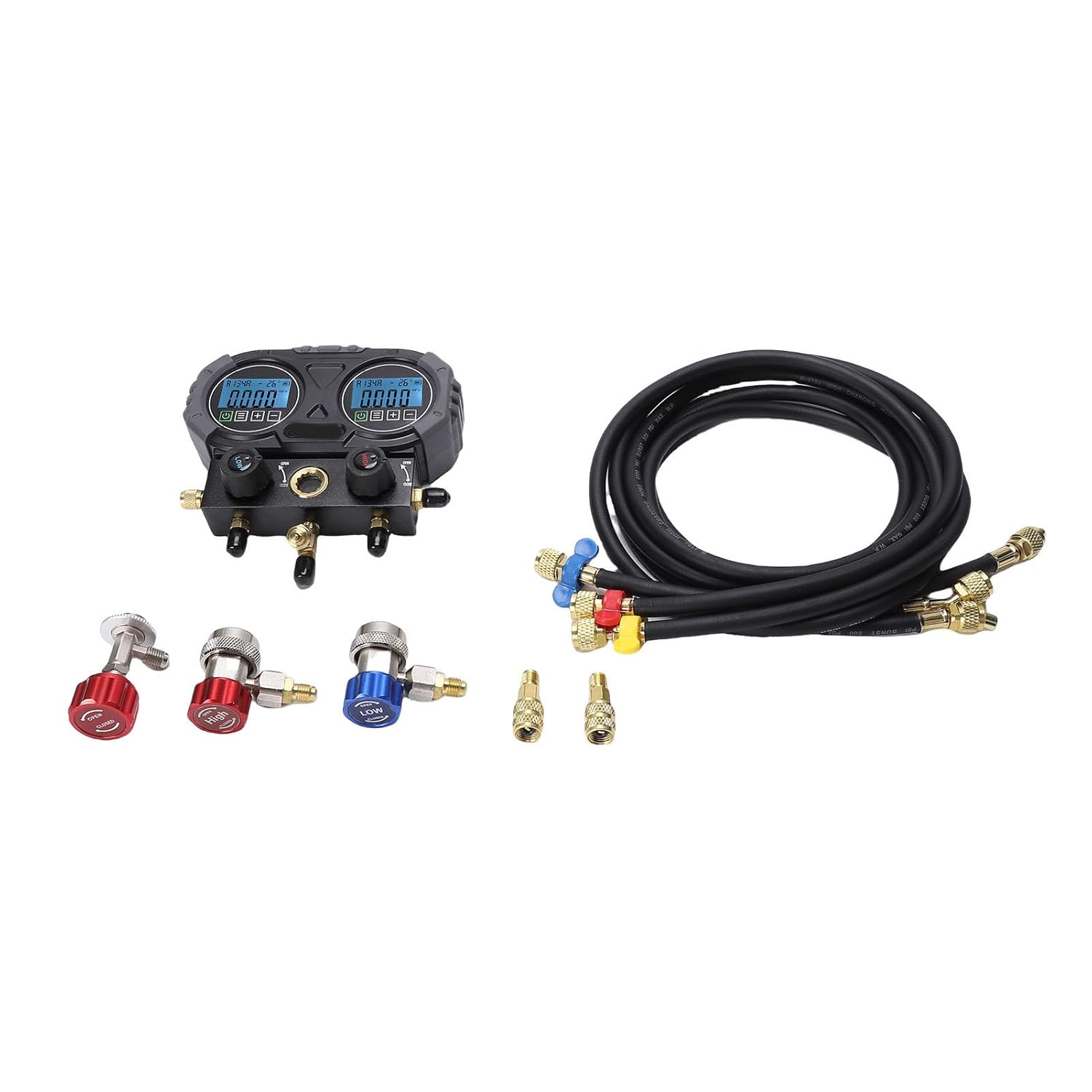

Digital HVAC Manifold Air Conditioning Pressure Meter Refrigerant Charging Kit with 0-6000 Kpa Range LCD for R134A R1234YF R22 R290 R32 R404A R407C R410A

Specification: Item Type: AC Manifold Meter Product Material: ABS, Brass Battery: 1 x Battery (not included) Connection: 1/4 inch SAE Pressure Range: 0-60 BAR (0-6000 Kpa) Maximum Overload Pressure: 75 BAR Vacuum Range: -29INHG-0INHG Sensor Refresh Rate: 1 second Measurement Accuracy: ±0.2% Auto Shutdown Time: 30 minutes Backlight Screen Off Time: 1 minute Temperature Unit: ℃/℉ Applicable Refrigerants: R134A, R1234YF, R22, R290, R32, R404A, R407C, R410A, R452B, R454B, R502, R507, R600, R600A, R12, R125, R141B, R401A, R401B Applicable Units: MPA, KPA, BAR, PSI, INHG, KGF/CM² Resolution: 0.001MPA, 1KPA, 0.01BAR, 0.1PSI, 1INHG, 0.01KGF/CM² How to Use: Direct use Package List: 1 x Pressure Meter 3 x 1.5m R410A Brass Connector Hose 2 x Adaptor (R410A conversion) 2 x R134A Adjustable Connector 1 x R134A Anti Backflow Bottle Opener 1 x English User Manual 1 x Storage Box

• Applicable Refrigerants: This digital manifold meter is compatible with a wide range of refrigerants, including R134A, R1234YF, R22, R290, R32, R404A, R407C, R410A, R452B, R454B, R502, R507, R600, R600A, R12, R125, R141B, R401A, R401B, etc. It is designed for charging, diagnostic testing, and recovery tasks in HVAC system
• Operating Parameters: The pressure testing range is 0-6000 Kpa with a resolution of 1 Kpa and an accuracy of ±0.2% (FS) +5 . The maximum overload pressure is 7500 Kpa (7.5 Mpa/75 bar), and the vacuum measurement range is -29 INHG-0 INHG
• Precise Performance: Equipped with industrial grade ball valve and imported pressure sensor, this meter ensures stable work without leakage, and dependable measurements. The high resolution display provides clear visualization of pressure and temperature data
• Convenient Design: The refrigeration digital meter features a visual window that allows you to view refrigerant charging status in real time. The LCD screen ensures easy data reading in dark environments, while the back hook design facilitates effortless testing and other tasks
• Versatile Applications: This digital single manifold pressure meter is compatible with multiple refrigerants and widely applicable to HVAC refrigerant charging, maintenance, evacuation, diagnostic checks, and recovery work, offering broad applicability across various scenarios
