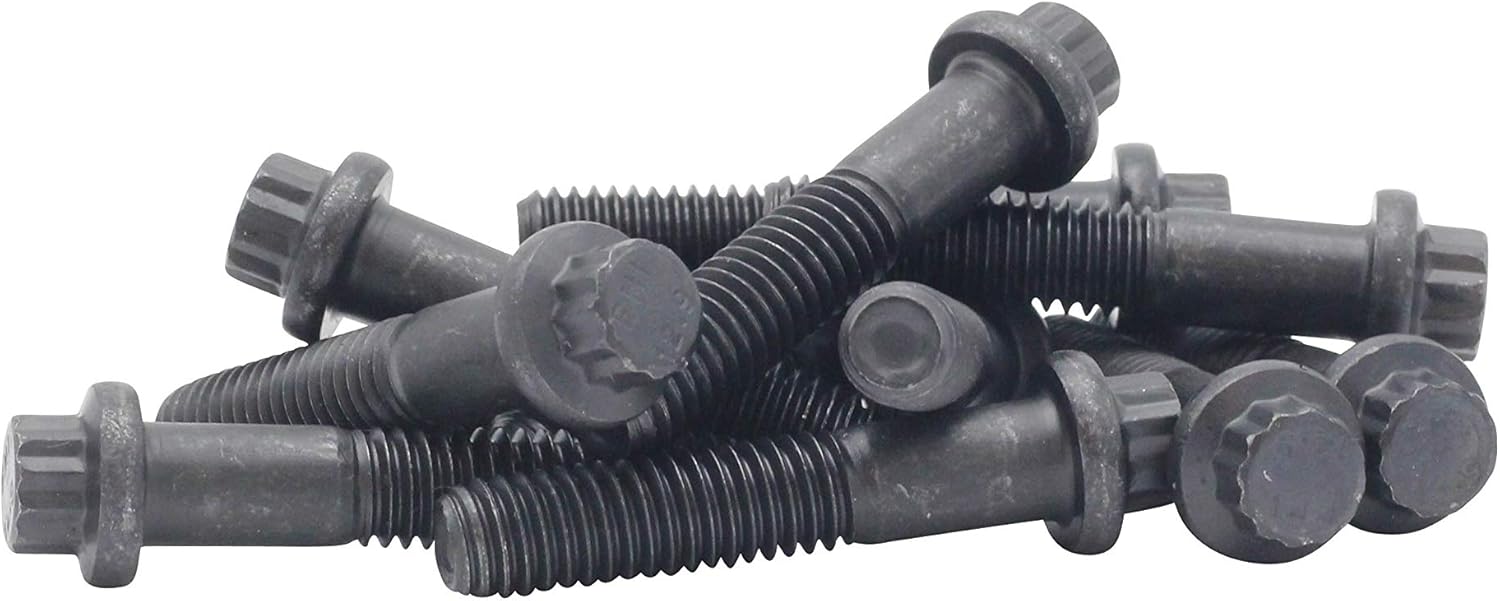

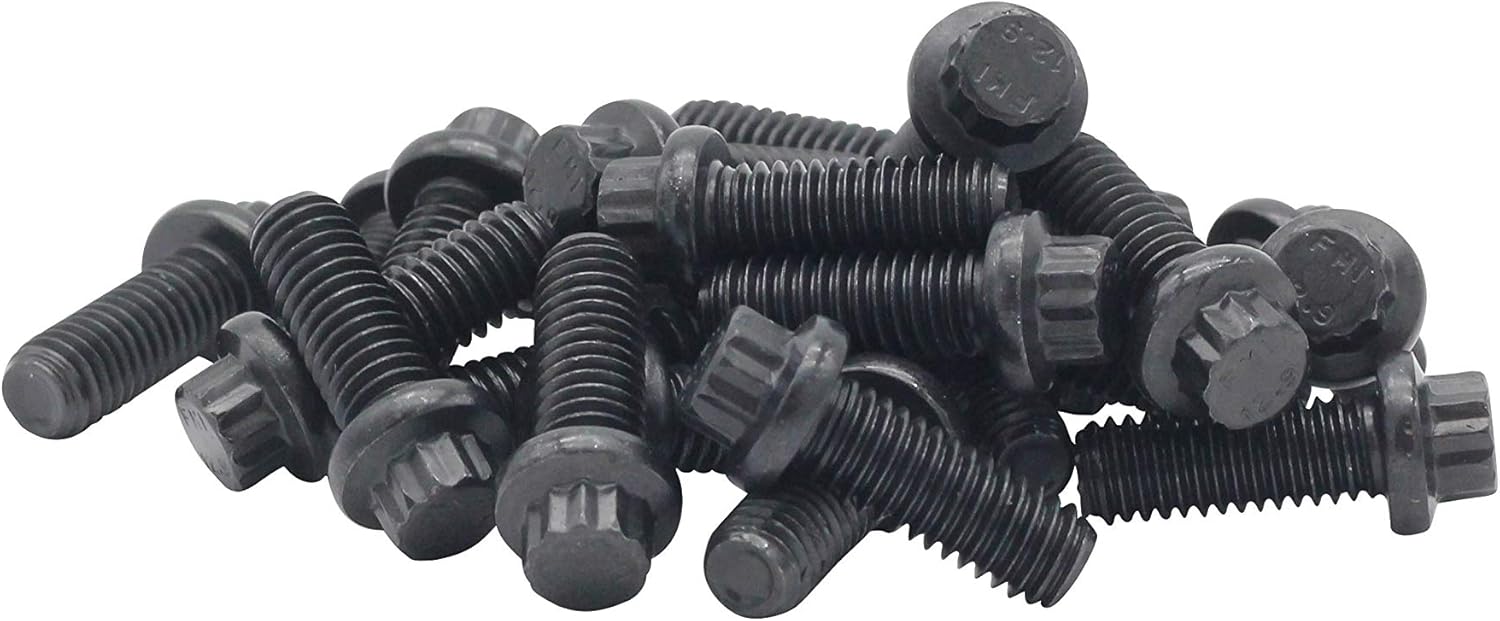

(25pcs) BelMetric M6X20 Metric External 12-Point Hardened 12.9 Flange Bolt, ASME-ANSI B18.2.5M, Black Phosphate, BTP6X20BLK-25
Product details
| Management number | 218160147 | Release Date | 2026/05/03 | List Price | $10.16 | Model Number | 218160147 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
M6X1.0X20, M6X1X20, M6X20 Metric External 12-Point-Hardened 12.9 Flange Bolt 12-Point flange bolts offer a good alternative to hex head bolts for high strength fastening. Features a non serrated smooth bottom flange. Diameter: 6mmPitch: 1.0 Coarse Thread Length Under Head: 20mm Wrench Size: 6mm 12-Point Wrench Reduced Flange Width: 9.95mm Total Head Height: 6.0mm (includes flange) ASME-ANSI B18.2.5M Full Thread Material: 12.9 Alloy Steel AISI4135 Finish: Black Phophate The reduced flange diameter makes it easy to fit these flange bolts in tight spaced or bored holes. Greater torque can be applied to these bolts because of 12-spline design, which provides more surface area for contact during tightening. Also known a twelve spline flange bolt, ferry cap screw, flange screw with 12 external radial corners. Qty: 25 Flange Bolts Per Package
- M6X1.0X20, M6X1X20, M6X20
- Non-serrated smooth bottom flange.
- Reduced Flange Diameter for Applications Tight on Space.
- 12-Spline Drive Design for Greater Torque
- Right Hand Threading
| Brand | Bel-Metric |
|---|---|
| Color | Black |
| Head Type | Hex |
| Size Name | M6X20 (25pcs) |
| Metal Type | Alloy Steel |
| Part Number | BTP6X20BLK-25 |
| Thread Size | M6 |
| Thread Type | Metric |
| Manufacturer | BelMetric |
| Thread Style | Right Hand |
| Fastener Type | Hexagon Bolt |
| Item Diameter | 6 Millimeters |
| Item Hardness | Grade 12.9 |
| Material Type | 12.9 Alloy Steel AISI 4135 |
| Exterior Finish | Black Phosphate |
| Number Of Items | 1 |
| Number of Pieces | 25 |
| Screw Head Style | Hex |
| Manufacturer Grade | Grade 2 |
| Compatible Groove Diameter | 6 Millimeters |
